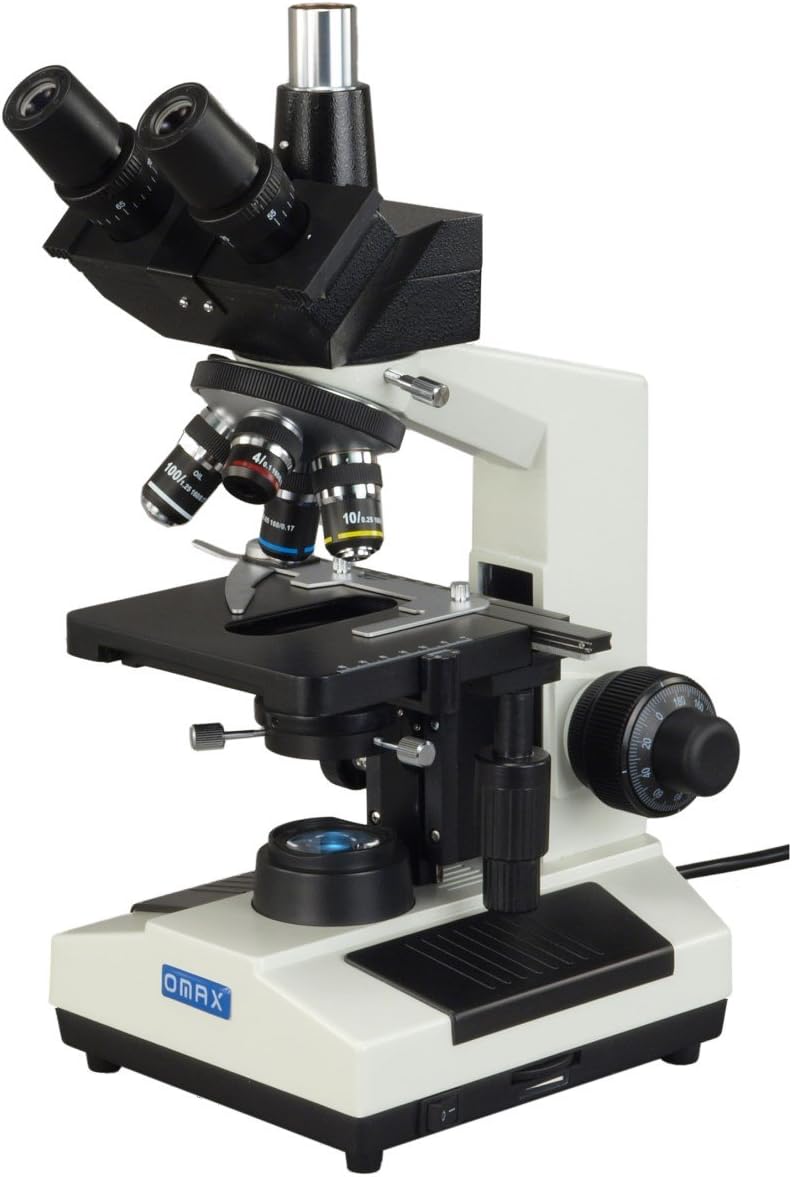

OMAX M837ZL-A191 Dry Darkfield 40X-2500X High Power Replaceable LED Light Trinocular Blood Analysis Compound Biological Microscope

The trinocular compound LED microscope provides both brightfield and darkfield microscope system. It offers six level magnifications from 40X to 2500X. The darkfield biological microscope features an optical system for simultaneously observing images through eyepieces and an adjustable trinocular port. The laboratory microscopy comes with trinocular head, body frame, revolving quadruple nosepiece, two pairs of widefield eyepieces, four DIN achromatic objectives, large double layer mechanicalstage, LED illumination system and darkfield NA0.7-0.9 & brightfield Abbe NA1.25 condensers. The LED lamp can be replaced by yourself. All lenses are made of high quality optical glass. The high resolution image in the field of view is crystal clear and will satisfy the demands of professionals. The trinocular microscopy is good for teaching, demonstration, clinical examination and research purpose.

• Total magnification: 40X-100X-250X-400X-1000X-2500X; Eyepieces: widefield WF10X/18 and WF25X; Objectives: achromatic DIN 4X, 10X, 40X (S), 100X (S, Oil); Viewing head: 45 degrees inclined 360 degrees swiveling trinocular; Interpupillary distance: sliding adjustable 2-3/16inch ~ 2-15/16inch (55mm ~ 75mm); Diopter: adjustable on both eyepiece tubes
• Total magnification: 40X-100X-250X-400X-1000X-2500X; Eyepieces: widefield WF10X/18 and WF25X; Objectives: achromatic DIN 4X, 10X, 40X (S), 100X (S, Oil); Viewing head: 45 degrees inclined 360 degrees swiveling trinocular; Interpupillary distance: sliding adjustable 2-3/16inch ~ 2-15/16inch (55mm ~ 75mm); Diopter: adjustable on both eyepiece tubes
• Total magnification: 40X-100X-250X-400X-1000X-2500X; Eyepieces: widefield WF10X/18 and WF25X; Objectives: achromatic DIN 4X, 10X, 40X (S), 100X (S, Oil); Viewing head: 45 degrees inclined 360 degrees swiveling trinocular; Interpupillary distance: sliding adjustable 2-3/16inch ~ 2-15/16inch (55mm ~ 75mm); Diopter: adjustable on both eyepiece tubes
• Nosepiece: revolving quadruple; Stage: mechanical stain-resistant double layer, size: 5-1/2inch x 5-1/2inch (140mm x 140mm), translation range: 3inch x 2inch (75mm x 50mm); Photo tube adjustment range: 5/8inch (15mm); Focus: coaxial coarse and fine focus knobs on both sides, rack and pinion adjustment, with tension control; Focusing knob can be locked for observation and transportation
• Brightfield condenser: NA1.25 Abbe condenser with iris diaphragm and filter holder, rack and pinion adjustment; Dry darkfield condenser: NA0.7-0.9; Black palm rest on the base; Illumination: transmitted (lower), replaceable 3W LED light, variable intensity
• Metal mechanical components; Power supply: 100V~240V 50/60Hz worldwide range (US and Canada power plug)
• 5-year warranty against manufacturing defects
